Model

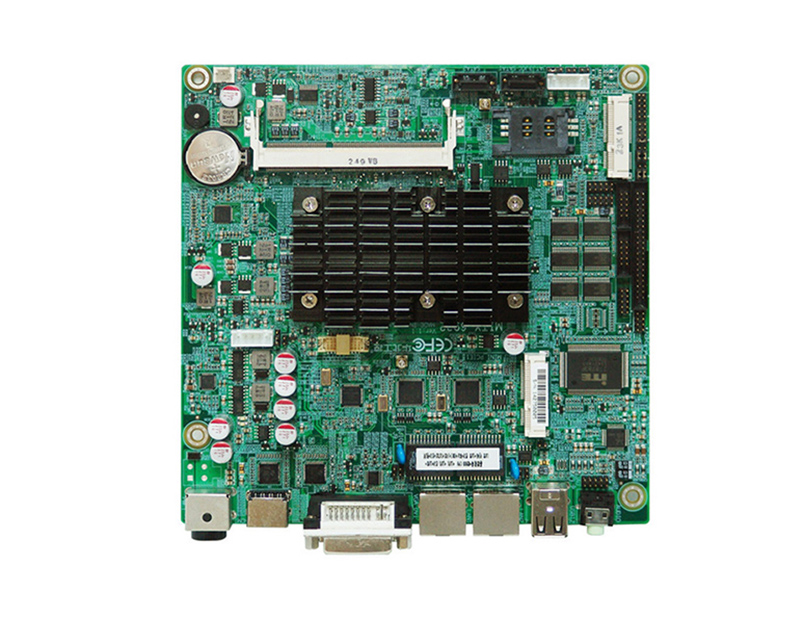

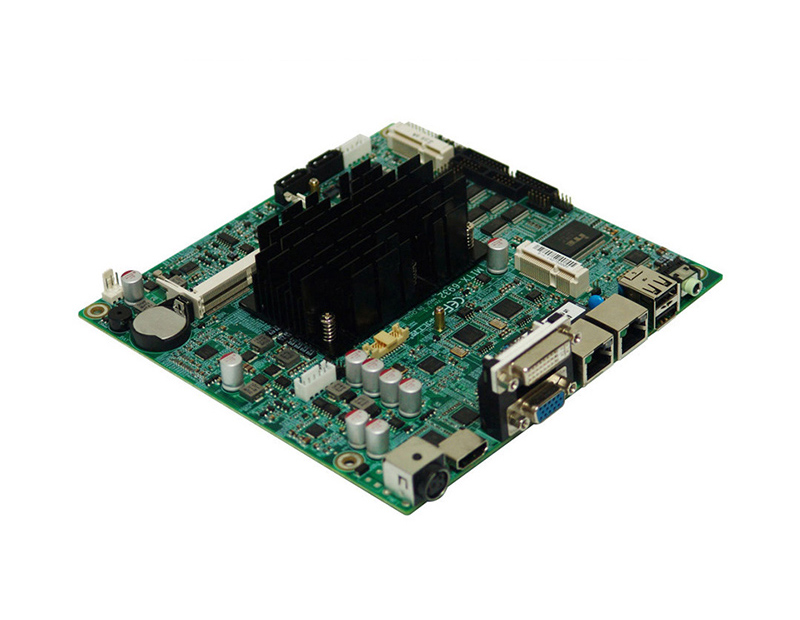

MITX-6932

CPU

Support Intel Atom N2800/D2550 CPU

Chipset

NM10

Graphic Control

CPU integration

Memory

1*SO-DIMM Memory slot,DDR3 1066MHz,The biggest can support 4GB

Storage

2*SATA,Support SATA 2.0

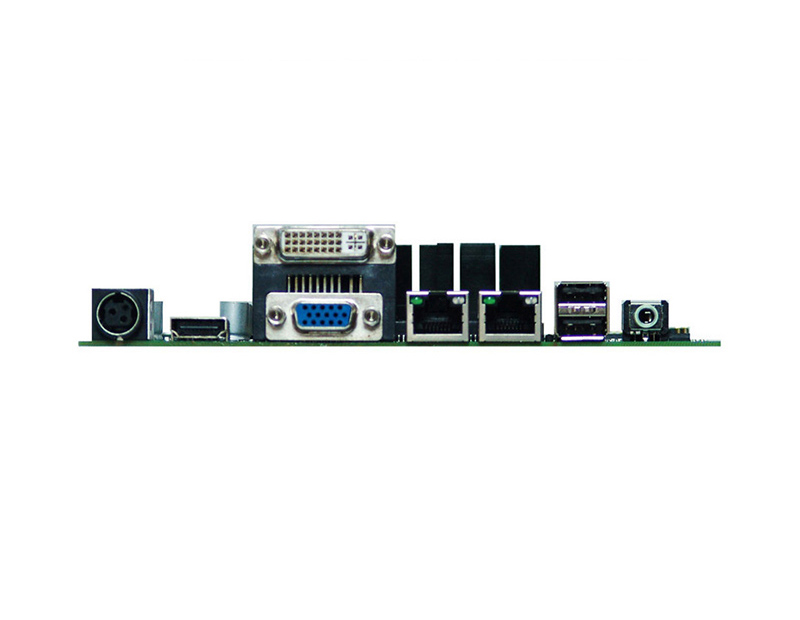

Display Port

Support 1*VGA,1*DVI,1*Dual channel 24bit LVDS VGA Support up to 2048*1536 Dual channel 24bit LVDS Support up to 1366x768 DVI Support up to 1920x1200

Ethernet

2*LAN Intel 82583V,10/100/1000Mbps RJ45

USB

6*USB2.0

Audio

1*Line-out,1*Mic-in,1*Line-in

COM

5*RS-232,1*RS-232/422/485

I/O

1*PCI Slots 2*Mini-PCIe,One of the 1*Mini-PCIe support MSATA,another 1*Mini-PCIe support WIFI/3G/4G 1*CPU FAN 8*GPIO can support Input/Output programming

Watchdog

Support

BIOS

AMI UEFI BIOS

System

Windows XP,Windows 7,Windows 10,Linux

Power Supply

ATX

Temperature/humidity

Working temperature:0℃～60℃ Storage temperature:-40℃～85℃ 5%～95% Relative humidity,No condensation

Size

170mm x 170mm
