Model

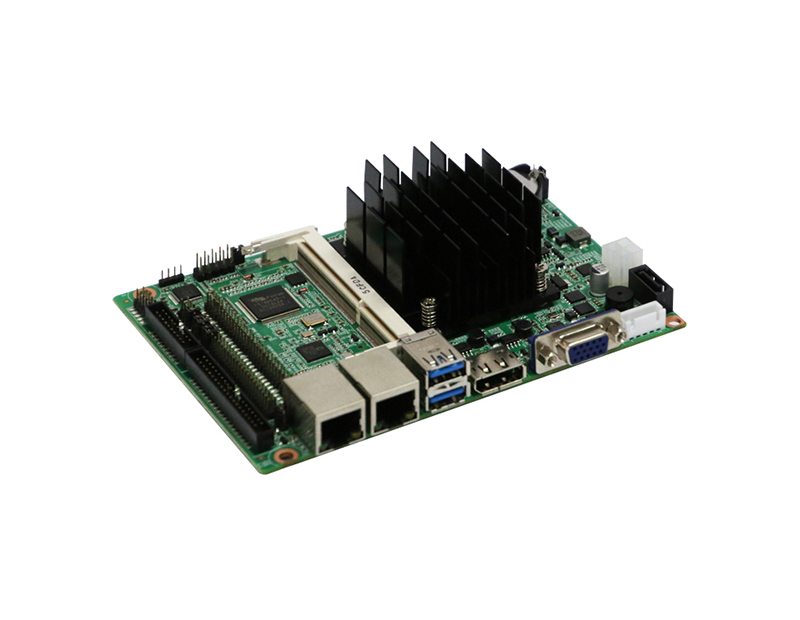

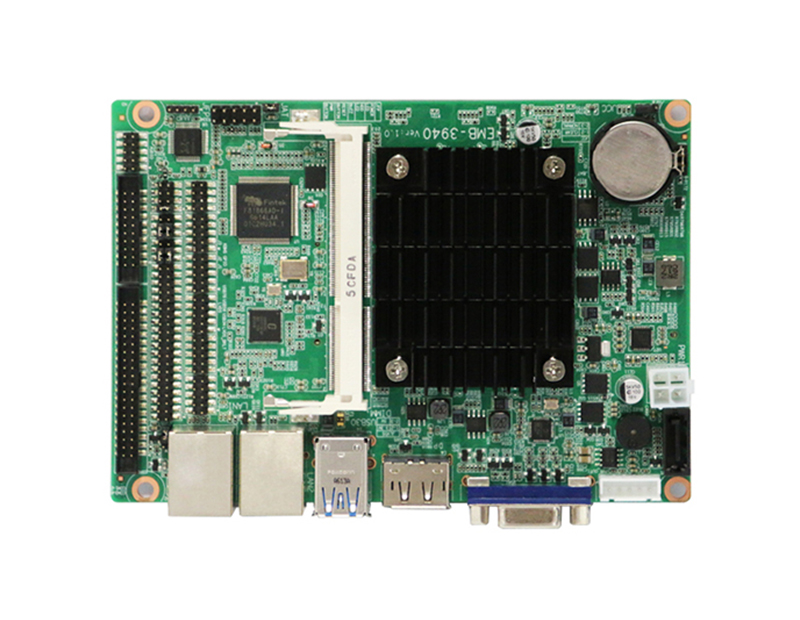

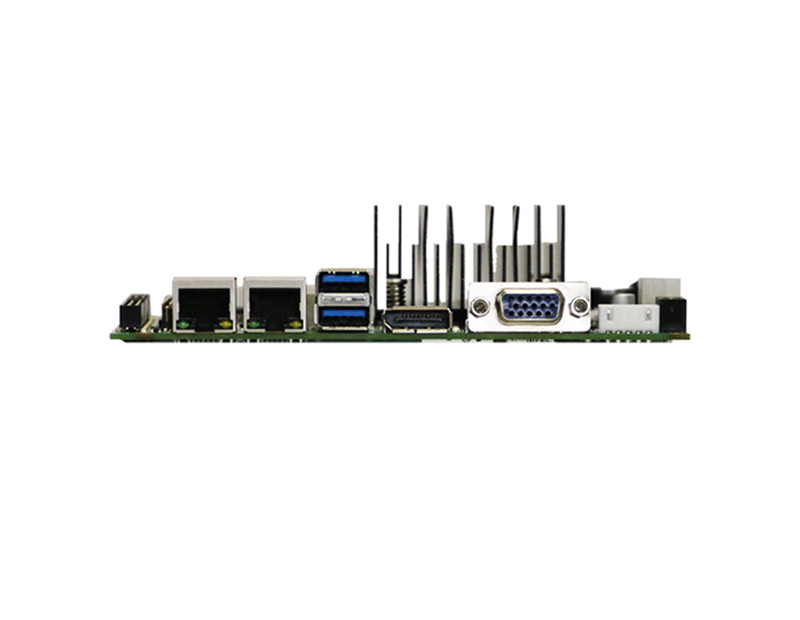

EMB-3940

CPU

Support Intel Atom N3060/N3160 CPU

Graphic Control

CPU integration

Memory

1*SO-DIMM Memory slot,DDR3L 1066/1333/1600MHz,The biggest can support 8GB

Storage

1*SATA,Support SATA 3.0 1*eMMC(optional)

Display Port

Support 1*VGA,1*DP,1*Dual channel 24bit LVDS VGA Support up to 1920*1200 Dual channel 24bit LVDS Support up to 1920*1200 DP Support up to 3840*2160

Ethernet

2*LAN Intel I211/I210,10/100/1000Mbps RJ45

USB

2*USB3.0,5*USB2.0

Audio

1*Line-out,1*Mic-in,1*Line-in,1*AMP

COM

5*RS-232,1*RS-232/422/485

I/O

2*Mini-PCIe,Mini-PCIe1Support 3G/4G/WIFI orMSATA,Mini-PCIe2 is the standard MINIPCIE 1*SIM Card slot 8*GPIO can support Input/Output programming 1*CPU FAN

Watchdog

Support

BIOS

AMI UEFI BIOS

System

Windows 7,Windows 10,Linux

Power Supply

DC 12V

Temperature/humidity

Working temperature:0℃～60℃ Storage temperature:-40℃～85℃ 5%～95% Relative humidity,No condensation

Size

146mm x 102mm
