Model

BIS-6390C10

CPU

Rockchip RK3399 CPU

Graphic Control

Mali-T860@MP4 GPU

Memory

Onboard 2GB LPDDR3 memory，The biggest can support 4GB

Storage

1*eMMC,The biggest can support 128GB 1*TF

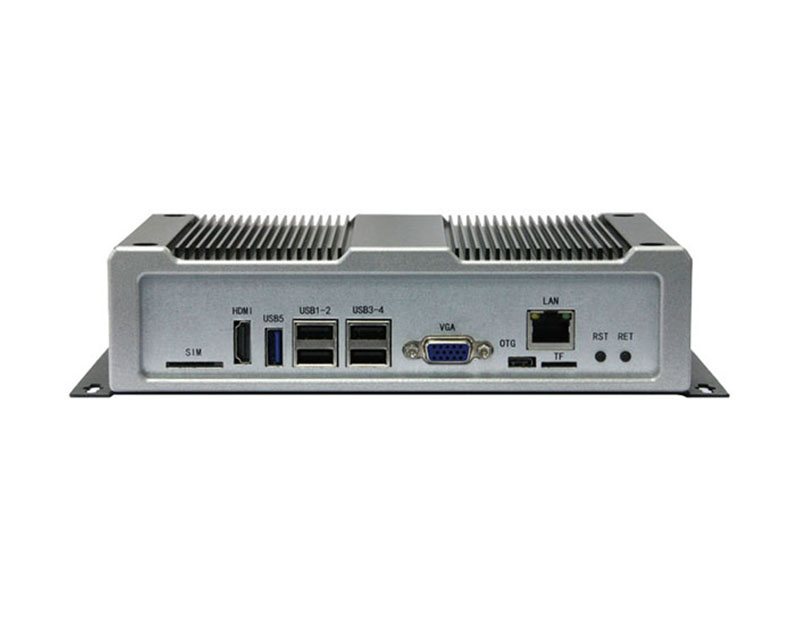

Display Port

Support 1*HDMI,1*VGA HDMISupport up to 4096x2160@60Hz VGASupport up to 1920x1080@60Hz

Ethernet

1*LAN Realtek RTL8211F,10/100/1000Mbps RJ45 Onboard Wifi Onboard bluetooth

USB

1*USB3.0,5*USB2.0

Audio

1*Headphone,1*MIC-IN,2*5W AMP

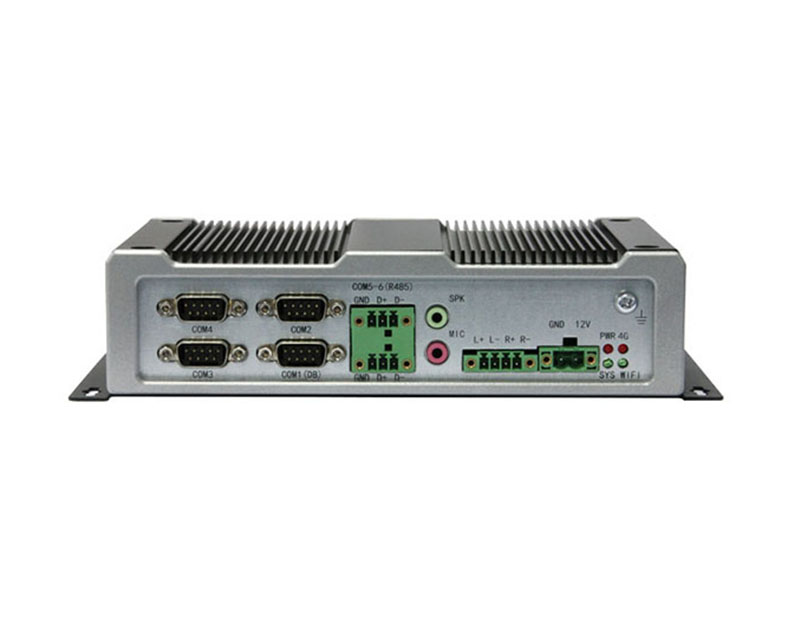

COM

4*RS-232,2*RS-485

I/O

1*Mini-PCIe(Support 4G module) 1*SPI,1*I2C 4*LED

Watchdog

Support

System

Android,Linux

Power Supply

DC 12V

Temperature/humidity

Working temperature : 0℃～60℃ Storage temperature:-40℃～80℃ 5%～95% Relative humidity,No condensation

Size

227.6mm x 143.6mm x 52.2mm

Mainboard model

KD-18

Cooling way

passive

Installation

Desktop/Wall
