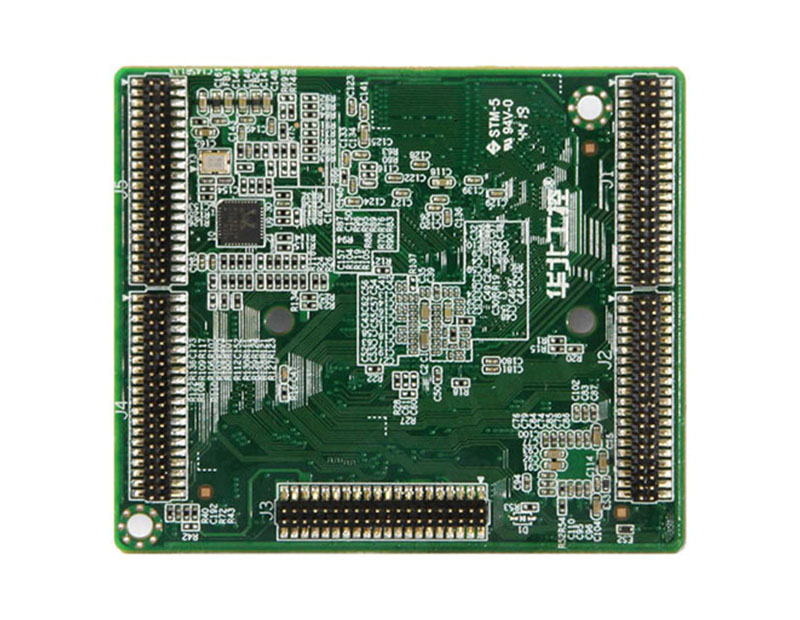

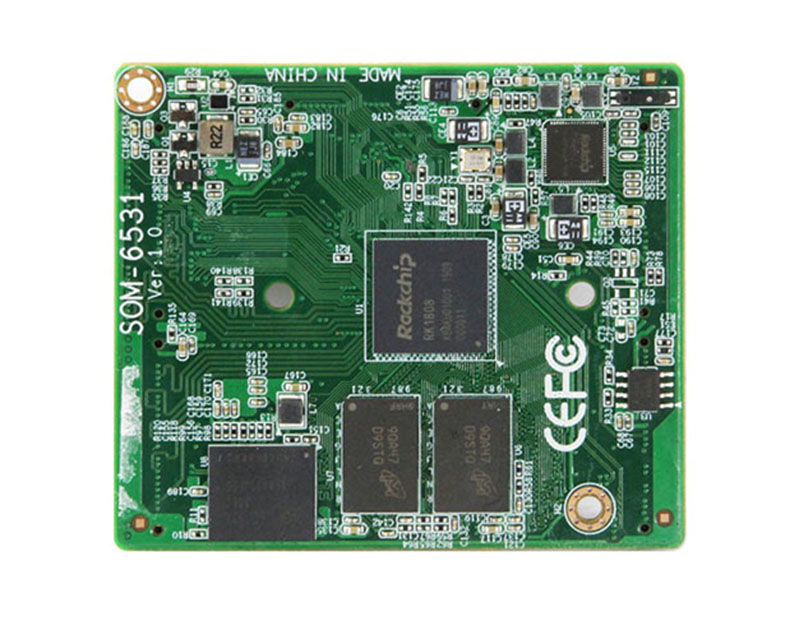

SOM-6531

Support Rockchip RK1808K CPU,1*LAN,1*USB3.0,2*USB2.0,8*COM,Core board

◆ Support Rockchip RK1808K CPU

◆ Onboard1GB DDR4 Memory,The biggest can support 2GB

◆ 1*MIPI

◆ 1*LAN,1*USB3.0,2*USB2.0,8*COM

◆ 1*Mini-PCIe

Ask Price Comparison
  • Product Specification
  • Download Center
  • Model

    SOM-6531

    CPU

    Rockchip RK1808K CPU

    NPU

    1*NPU

    Memory

    Onboard1GB DDR4 Memory,The biggest can support 2GB

    Storage

    1*eMMC,The biggest support 128GB

    Display Port

    1*MIPI MIPI up to 1920x1080@60Hz

    Ethernet

    1*LAN Realtek RTL8211F, 10/100/1000Mbps Double row needle

    USB

    1*USB3.0(reuse),2*USB2.0

    I/O

    Pin extended interface

    Watchdog

    Support

    System

    Linux

    Power Supply

    DC 5V

    Temperature/humidity

    Working temperature:0℃~60℃ Storage temperature:-40℃~80℃ 5%~95% Relative humidity,No condensation

    Size

    70mm x 60mm
