Model

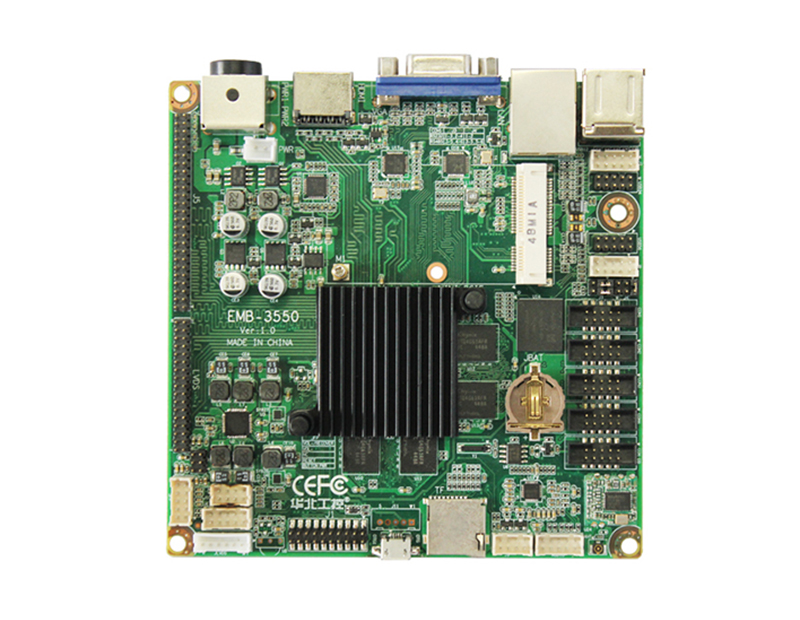

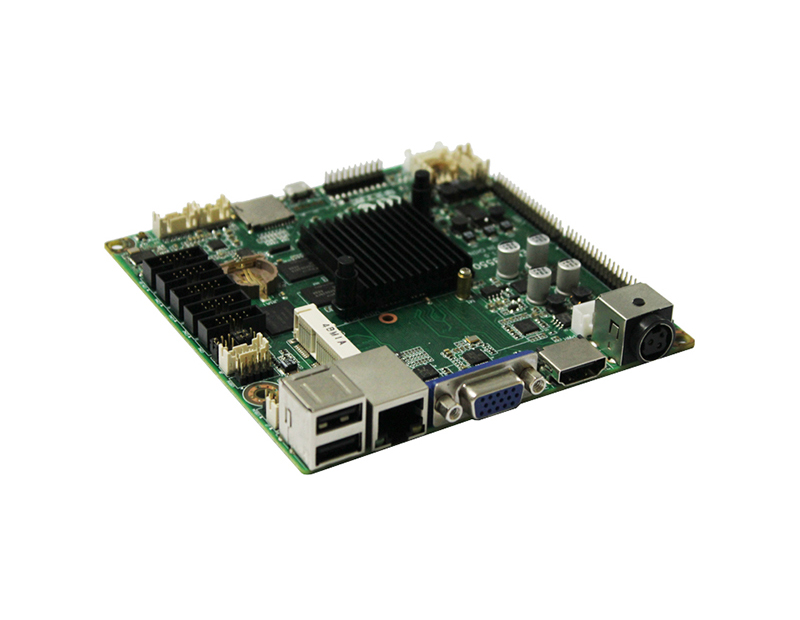

EMB-3550

CPU

Rockchip RK3288 CPU

Graphic Control

Mali-T764@MP4 GPU

Memory

Onboard2GB DDR3 Memory，The biggest can support 4GB

Storage

1*eMMC,The biggest support 128GB 1*TF

Display Port

1*HDMI,1*VGA,1* Dual channel 24bit LVDS HDMI up to 4096x2160@60Hz VGA up to 1920x1080@60Hz Dual channel 24bit LVDS up to 1920x1080@60Hz

Ethernet

1*LAN Realtek RTL8211F,10/100/1000Mbps RJ45 Onboard Wifi Onboard bluetooth

USB

9*USB2.0

Audio

1*Headphone,1*MIC-IN,2*5W AMP

COM

4*RS-232,1*RS-232/485

I/O

1*Mini-PCIe(Support 4G module) 20*GPIO(reuse) 1*SPI,1*I2C

Watchdog

Support

System

Android,Linux

Power Supply

DC 12V

Temperature/humidity

Working temperature:0℃～60℃ Storage temperature:-40℃～80℃ 5%～95% Relative humidity,No condensation

Size

120mm x 120mm
