Model

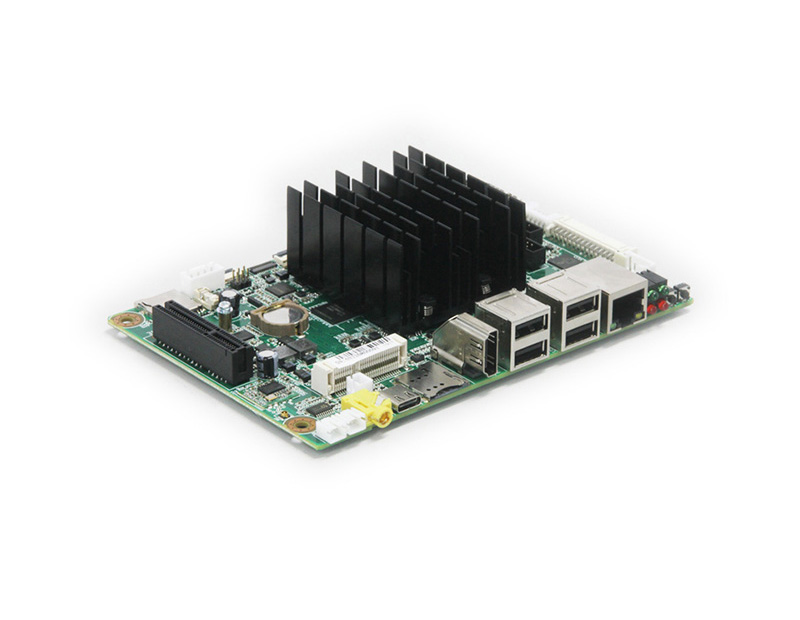

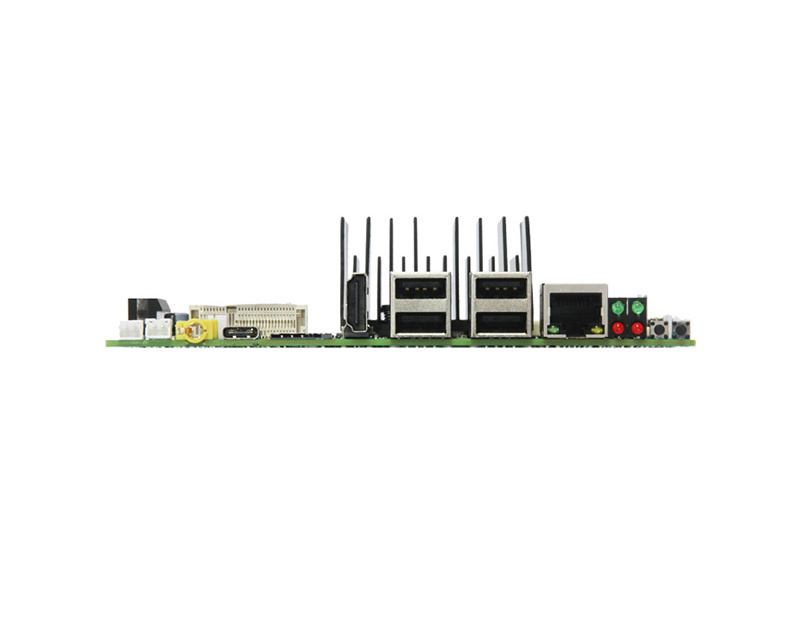

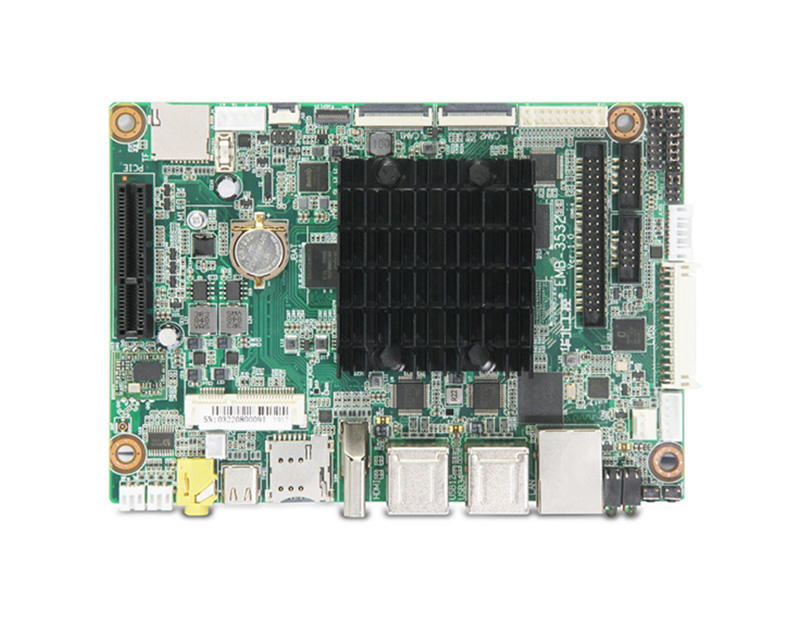

EMB-3532

CPU

Rockchip RK3399 Pro CPU

Graphic Control

Mali-T860@MP4 GPU

NPU

1*NPU

Memory

Onboard2GB( CPU) LPDDR3 Memory，The biggest can support 4GB Onboard1GB(NPU) LPDDR3 Memory，The biggest can support 2GB

Storage

1*eMMC,The biggest support 128GB 1*TF

Display Port

1*HDMI,1*MIPI,1* Dual channel 24bit LVDS HDMI up to 4096x2160@60Hz MIPI up to 4096x2160@60Hz Dual channel 24bit LVDS up to 1920x1080@60Hz

Ethernet

1*LAN Realtek RTL8211F,10/100/1000Mbps RJ45 Onboard Wifi Onboard bluetooth

USB

4*USB3.0,2*USB2.0

Audio

1*Headphone,2*MIC-IN,2*5W AMP

COM

5*RS-232,1*RS-232/485

I/O

1*Mini-PCIe(Support 4G module) 2*MIPI 11*GPIO(reuse) 1*SPI,1*I2C 4*LED

Watchdog

Support

System

Android,Linux

Power Supply

DC 12V

Temperature/humidity

Working temperature:0℃～60℃ Storage temperature:-40℃～80℃ 5%～95% Relative humidity,No condensation

Size

146mm x 102 mm
